The geneva systems advanced glass
orchid growing greenhouse green house kit
YOUR PLANT'S DESERVE THE BEST!

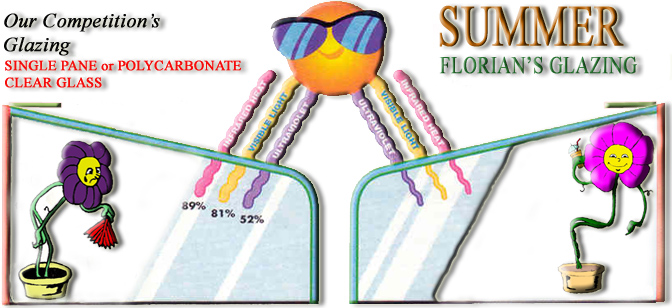

  • PROBLEMS:
  • OVERHEATING
  • PLANTS BURN
  • HIGH COOLING COST
  • REQUIRES ADDITIONAL WATERING CYCLES
  • POLYCARBONATE SCRATCHES EASY
  • POLYCARBONATE WILL TURN YELLOW
  • SHADE CLOTH REQUIRED
  • THE SOLUTION:
  • OVERHEATING PROBLEMS ARE SOLVED BY USING A COMBINATION OF VERY LOW RELATIVE HEAT GAIN GLASS.
  • HERMETICALLY SEALED
  • INSULATED GLASS
  • MC LOW E GLASS AVAILABLE
  • HELPS CONTROL COOLING COST,
  • REQUIRES FEWER WATERING CYLCES

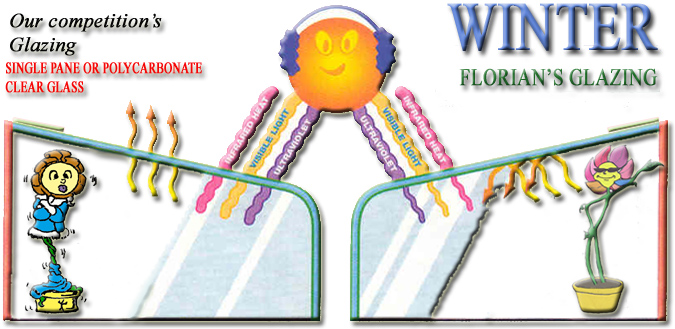

  • PROBLEMS:
  • DRAFTS, COLD FEELING - WINTER INVISIBLE GLASS TEMPERATURE (COLUMN I)
  • CONDENSATION FORMS ON GLASS - INSIDE DEW POINT (COLUMN J)
  • HEAT ESCAPES WITH LITTLE RESISTANCE - WINTER R-VALUE (COLUMN L)
  • THESE PROBLEMS ARE COMMON WITH OUR COMPETITION’S GLASS THAT CAUSE DRAFTS, CONDENSATION AND LARGE AMOUNTS OF HEAT LOSS. DIFFICULT TO MAINTAIN - CORRECT TEMPERATURE HIGH HEATING COST.
  • THE SOLUTION:
  • DRAFTS ELIMATED BY USING A WINTER INSIDE GLASS TEMPETATURE OF 57`OR HIGHER (COLUMN I) (WARMER FEELING)
  • HIGH RESISTENCE TO CONDENSATION WITH AN INSIDE DEW POINT OF –2 OR LOWER (COLUMN J)
  • HIGHER INSULATION R-VALUE KEEPS HEAT IN THEREBY LOWERING YOUR HEATING & COOLING COSTS.
  • FLORIAN OFFERS SEVERAL OPTIONS FOR GLAZING TO MEET ANY BUDGET AND REQUIREMENTS. SEE FOLLOWING HIGH PERFORMANCE GLAZING CHART.
Florian offers several options for glazing to meet any budget and performance requirements. See following high performance glazing chart.
GLOSSARY OF TERMS FOR GLAZING CHART
A - "Glazing code" - Refers to Florian's recommendation for selecting glass (R) roof, (W) wall.

B - "Glazing description" - A description of the components used to obtain the glazing unit being described.

C - "Upcharge over clear" Insulated - Multiply the number in this column by the total square footage of option desired, and add to the base price of a standard unit with clear glass.

D - "Unit Availability" - Glass is available as a standard in the units specified in this column. G- Geneva greenhouse and greenhouse kit, S- Sierra sun room, sun room kits and solarium, W- Woodhaven solarium & sun room.

E - "Shading co-efficient" - Multiplier for the amount of solar gain entering through the glass. For example: a piece of glass with a shading co-efficient of .85 would let in 85% if the solar gain that would travel through a 1/8" piece of clear glass.

F - "Relative heat gain" - The measurable amount of energy which penetrates the glass is expressed in terms of BTU's of heat gain per hour per square foot of glass area.

G - "% Visible light transmittance" - The percentage of light in the visible spectrum, that is directly transmitted through the glass.

H - "% UV light transmittance" - Percentage of ultra-violet radiation transmitted through the glass.

I - "Inside the glass temp" - The temperature of the inside surface of the glass in degrees F when the following ashrae conditions exist. Outside temperature of 0 degrees F with a 15mph wind, and inside temperature of 70 degrees F.

J - "Inside dew point" - The outside temperature in degrees F that will cause condensation on the inside surface of the glass. This number assumes an inside relative humidity of 60% and a temperature of 70 degrees F.

K - "Winter U value" - The total heat transfer co-efficient which is the measure of heat loss through the glass due to a difference between indoor and outdoor air temperatures. The lower the U value, the better the insulating properties of the glass. (BTU/HR/SQFT/F).

L - "Winter R value" - The resistance to heat loss through the glass. The higher the R value, The better the insulating properties. (R=1/U).

NOTE: SUNCLEAN TRADEMARK, AZURLITE TRADEMARK AND SOLARCOOL TRADEMARK ARE TRADEMARKS OF PPG INDUSTRIES. HEAT MIRROR TRADEMARKS, 2ND GENERATION HEAT MIRRIOR TRADEMARKS AND XUV TRADEMARKS ARE TRADEMARKS OF SOUTHWALL TECHNOLOGIES, INC.

High performance glass improves plant growth in all zones
